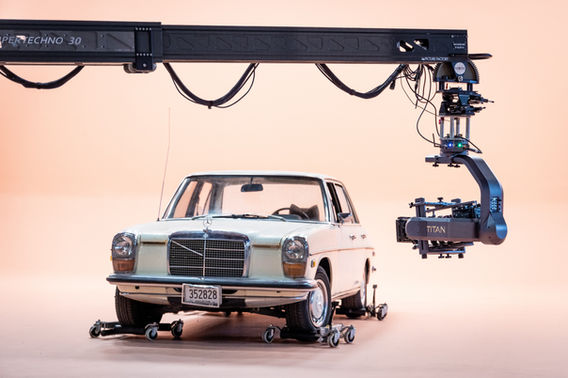

MOTOCRANE TITAN
STABILIZED REMOTE HEAD

The most powerful 3-axis stabilized head in the world.

PRECISIONNew slotless motors, a fiber optic gyro and GPS satellite tracking provide rock-solid stability.

​​

STRENGTH: The revolutionary, unified 6061-T6 billet aluminum mechanical structure provides a class leading 90 lb payload capacity.

SPEED: Optimized design and 18Nm (13ft-lbs) of peak torque allow for dynamic and aggressive applications, including gimbal operation at over 100mph.

SLIPRINGS: The world's first 3-axis gimbal equipped with sliprings for completely unrestricted & infinite movement on all 3 axis.

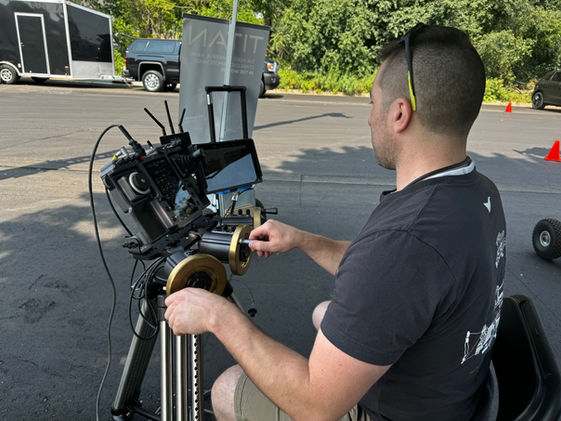

CONTROL: A modular system with an easy to navigate touch-screen interface, joystick or wheels control, and wired or wireless connectivity.

RAIN or SHINE: Weather resistant and rated for temps from -30ºF to 120ºF

Image 23.jpg

Mechanical

  • Construction: 6061-T6 Aluminum chassis

  • Maximum operational speed: 100+mph

  • Max motor torque: 18Nm

  • Max pan speed: 270º/sec

  • Maximum Payload Capacity: 90lbs/41kg

  • 70lbs/32kg recommended for dynamic tracking

  • Dry Weight: 46lbs/21kg

  • Weather rating: IP65 (water resistant)

  • Temperature rating: -30ºF - 120ºF

  • Gimbal Mounting: Mitchell mount

  • Payload mounting: Arri dovetail



Electrical

  • System Voltage: 48V (42-52VDC)

  • Comms: CAN-BUS, hardwired + 2.4Ghz wireless

  • Power output: 3x 14.4V Dtap (125W) + 1x 24V 3-Pin XLR (125W), 250W combined

  • Lens Driver: 3-channel, digital 7-pin LEMO
